Remaining Honda ATV inventory: Sold out!

Highlights

Liquid-cooled 675 cc engine using programmed fuel injection for strong performance in all conditions

As light as many 500s, the Rincon has an excellent power to weight ratio for better performance, nimble handling, improved fuel economy, and reduced trail wear and tear

Rugged automotive style automatic transmission with a manual electric shift option (ESP), and switchable 2wd/4wd

Full functioning digital display console with built in GPScape to get you there and back

Rincon exclusive fully independant front and rear suspension for improved handling, stability and ride

Specifications

Engine type:  Liquid-cooled longitudinally mounted single-cylinder four-stroke

Displacement:  675cc

Fuel Delivery:  PGM-FI fuel-injection

Transmission:  Fully automatic electronically controlled automotive-type three-speed with selectable ESP and reverse

Final Drive:  2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing front differential

Suspension:  Fully independant double wishbone with hydraulic shocks

Brakes:  Front dual 180 mm hydraulic discs; rear single hydraulic disc

Length / Width:  2,113mm (83.2 inches) / 1,189mm (46.8 inches)

Curb Weight:  294 kg (648 lb) including required fluids and full tank of gas - ready to ride

Fuel Capacity:  17 litres, including 3.8-litre reserve

Accessories

Honda Warn winch and mounting kit - installed $call

Windshield with Colour Matched Fairing $call

ATV utility cover $call

rear cargo box and seat $call

trailer hitch $call

model

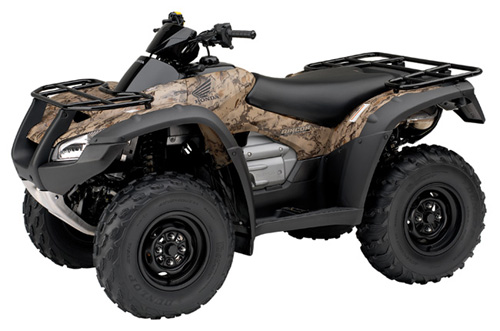

TRX680FG Rincon

year

2008

colours




click to enlarge
Highlights

Liquid-cooled 499 cc engine provides crisp throttle response

Fully automatic Hondamatic transmission with D1 and D2 modes, and a manual electric shift option (ESP), including switchable 2wd/4wd

Full functioning digital display console with built in GPScape to get you there and back

Adjustable suspension developed during Canadian trail testing provides excellent comfort and handling

Durable front disk brakes incorporating innovations to improve brake pad life and stopping power

Specifications

Engine type:  Liquid-cooled longitudinally mounted single-cylinder four-stroke

Displacement:  499 cc

Fuel Delivery:  Single 36 mm CV carb

Transmission:  Fully automatic electronically controlled hydromechanical CVT with selectable ESP and reverse

Final Drive:  2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing front differential

Suspension:  (front) independant double wishbone with hydraulic shocks, (rear) Swingarm with dual adjustable hydraulic shocks

Brakes:  Front dual 180 mm hydraulic discs; rear sealed mechanical drum

Length / Width:  2,108 mm (83 inches) / 1,189 mm (46.8 inches)

Curb Weight:  287 kg (633 lb) including required fluids and full tank of gas - ready to ride

Fuel Capacity:  15.5 litres, including 2.6-litre reserve

Accessories

Honda Warn winch and mounting kit - installed $call

Windshield with Colour Matched Fairing $call

ATV utility cover $call

rear cargo box and seat $call

trailer hitch $call

model

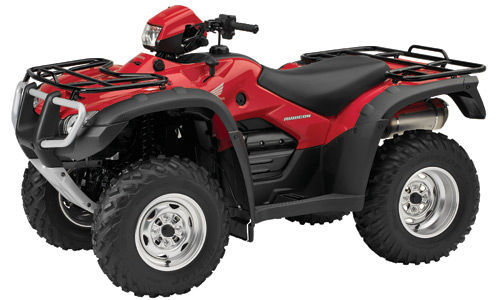

TRX500FG Rubicon
Canadian Trail Edition

year

2008

colours




click to enlarge
Highlights

Air-cooled, longitudinally mounted, 475 cc engine boasting strong low end torque performance and lower center of gravity

Honda's automotive derived electric power steering on the FPE and FPM models dramatically improves low speed maneuvering and safety

Ultra low first gear transmissions and an automatic clutch, with either the manual electric shift program (ESP) on the FPE, FE models, or 5 speed traditional foot shifter option (FPM, FM)and switchable 2wd/4wd

Selectable 2wd/4wd modes with a convenient handlebar mounted switch

Premium suspension providing ample travel and excellent ride comfort

Specifications

Engine type:  Air-cooled longitudinally mounted single-cylinder four-stroke

Displacement:  475cc

Fuel Delivery:  Single 36 mm CV carb

Transmission:  Five-speed foot shifting (FPM, FM) or Electric-shifting five-speed (FPE, FE) with automatic clutch, reverse and ultra-low first gear

Final Drive:  2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing front differential

Suspension:  (front) independant double wishbone with hydraulic shocks, (rear) Swingarm with dual hydraulic shocks

Brakes:  Front dual 180 mm hydraulic discs; rear sealed mechanical drum

Length / Width:  2,108mm (83 inches) / Width 1,189mm (46.8 inches)

Curb Weight:  FPE-290 kg (639 lb), FPM-289 kg (637 lb), FE-283 kg (624 lb), FM-281 kg (619 lb) including required fluids and full tank of gas - ready to ride

Fuel Capacity:  15.5 litres, including 2.6-litre reserve

Accessories

Honda Warn winch and mounting kit - installed $call

Windshield with Colour Matched Fairing $call

ATV utility cover $call

rear cargo box and seat $call

trailer hitch $call

model

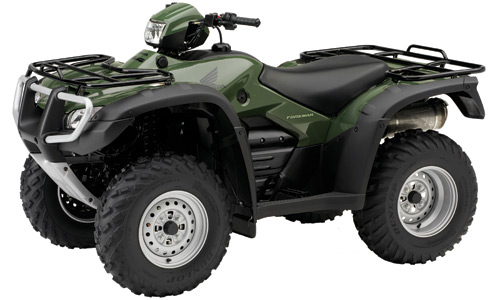

TRX500 Foreman
FE/FM/FPE/FPM

year

2008

colours

fe/fm

fpe/fpm


click to enlarge
Highlights

Liquid-cooled 420 cc engine using programmed fuel injection for precise performance in all conditions

Available five-speed foot shifting (FM) or Electric-shifting five-speed (FE) with automatic clutch, reverse

Strong and compact torque sensing front differential reduces steering effort and improves performance

Selectable 2wd/4wd modes with a convenient side mounted lever

Replaced the outgoing TRX350, adding sizable performance gains but with marginal cost and weight increase

Specifications

Engine type:  Liquid-cooled longitudinally mounted single-cylinder four-stroke

Displacement:  420cc

Fuel Delivery:  PGM-FI fuel-injection

Transmission:  Five-speed foot shifting (FM) or Electric-shifting five-speed (FE) with automatic clutch, reverse and ultra-low first gear

Final Drive:  2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing front differential

Suspension:  (front) independant double wishbone with hydraulic shocks, (rear) Swingarm with single hydraulic shock

Brakes:  Front dual 180 mm hydraulic discs; rear sealed mechanical drum

Length / Width:  2,055 mm (80.9 inches) / 1,172 mm (46.1 inches)

Curb Weight:  FE-267 kg (588 lb), FM-266 kg (586 lb) including required fluids and full tank of gas - ready to ride

Fuel Capacity:  13.2 litres, including 3.7-litre reserve

Accessories

Honda Warn winch and mounting kit - installed $call

Windshield with Colour Matched Fairing $call

ATV utility cover $call

rear cargo box and seat $call

trailer hitch $call

model

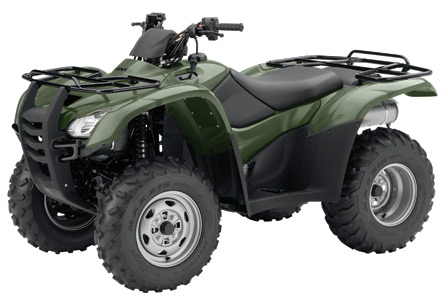

TRX420FE/FM

year

2008

colours

fe

fm


click to enlarge
Highlights

Air-cooled 229cc engine offering smooth performance, letting novice riders gain confidence as they learn

Smaller overall size yet with roomy ergonomics provides comfort for a wide range of riders

Light weight and premium suspension equates to excellent agility, stability and comfort, even on the roughest trails

Available five-speed foot shifting (TM) or Electric-shifting five-speed (TE) with automatic clutch, reverse

Specifications

Engine type:  Air-cooled longitudinally mounted single-cylinder four-stroke

Displacement:  229cc

Fuel Delivery:  Single 22mm carb

Transmission:  Five-speed foot shifting (TM) or Electric-shifting five-speed (TE) with automatic clutch and reverse

Final Drive:  2WD; direct rear driveshaft

Suspension:  (front) independant double wishbone with hydraulic shocks, (rear) Swingarm with single hydraulic shock

Brakes:  Front dual hydraulic discs; rear single hydraulic disc

Length / Width:  1,905mm (75 inches) / Width 1,034mm (40.7 inches)

Curb Weight:  TE-199 kg (439 lb), TM-196 kg (432 lb) including required fluids and full tank of gas - ready to ride

Fuel Capacity:  9 litres, including 2.3-litre reserve

Accessories

brake light kit $call

trailer hitch $call

model

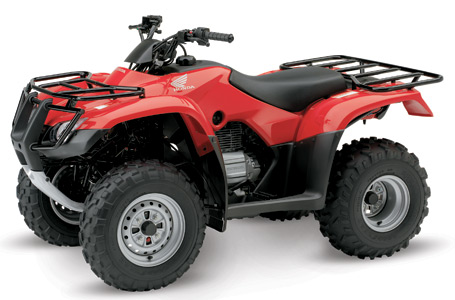

TRX250TE/TM

year

2008

colours


click to enlarge

All remaining inventory on sale!! Check with store for special pricing.

Description

Model

MSRP

Comments

Fourtrax

TRX680CG8

$ 12199

Fourtrax

TRX680FG8

$ 11899

Fourtrax

TRX500CG8

$ 10399

Fourtrax

TRX500FG8

$ 10099

Fourtrax

TRX500PEC8

$ 10349

Fourtrax

TRX500FPE8

$ 10049

Fourtrax

TRX500FEC8

$ 9849

Fourtrax

TRX500FE8

$ 9549

Fourtrax

TRX500PMC8

$ 9979

Fourtrax

TRX500FPM8

$ 9679

Fourtrax

TRX500FMC8

$ 9479

Fourtrax

TRX500FM8

$ 9179

Fourtrax

TRX420FEC8

$ 8599

Fourtrax

TRX420FE8

$ 8299

Fourtrax

TRX420FMC8

$ 8199

Fourtrax

TRX420FM8

$ 7899

Fourtrax

TRX250TE8

$ 6019

Fourtrax

TRX250TM7

$ 5509

cash price $3999

specifications and pricing subject to change without notice
