Remaining Honda Snowblowers inventory: click here!

Highlights

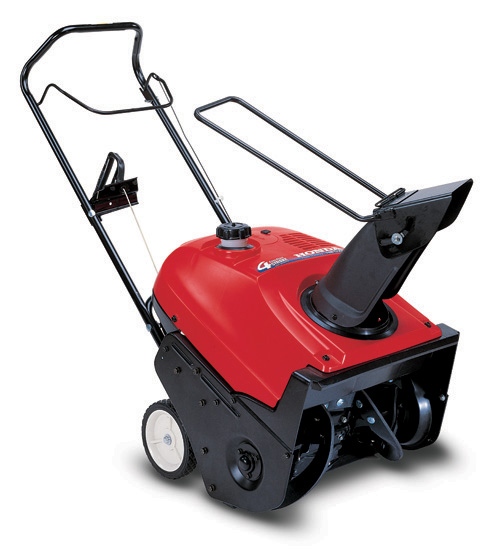

The HS520 series is perfect for the suburban or in town paved driveway, 2 cars wide and 2 cars deep. It's compact design requires a minimum of space in the garage and the handles are easily removed for summer storage or transport.

There are two models available, specifications are identical except for the starting system. the HS520CS comes with an AC electric starter which you simply plug into an electrical wall outlet and push the button on the starter panel.

The standard Honda GC160 5HP Over Head Cam Engine is very light, quiet, powerful and easy to start. To change the engine oil just remove the dipstick, place a pan at the rear of the blower and tip it backwards. The dipstick holder acts as a pour spout directing the oil right into the pan.

The HS520's auger system is single stage design with rubber tips which contact the surface and provide a semi selfpropelled result. The rubber tipped augers also cleans right down to the surface of the drive or walkway. In addition, this is very good for unistone applications as the rubbers will not chip their surfaces.

The controls are very simple! There is an on/off switch, choke knob and a single lever on the discharge chute which controls left/right and up or down adjustments.

The HS520 has excellent power and is capable of clearing heavy snow. The HS520 is capable of throwing snow up 30 feet depending on the conditions.

This type of auger is not recommended for dirt or gravel driveways.

Specifications

Engine: 5hp 160cc

Clearing width: 20"

Clearing height: 12"

Drive type: auger assist

Auger: rubber edge, belt driven

Auger height adjust: scraper bar

Chute rotation: manual lever

Chute deflection: manual lever

Clearing volume: Up to 29 metric tons/hr (32 tons/hr)

Starting: recoil (HS520C) / recoil/120v AC electric start (HS520CS)

Worklight: no

Fuel tank: 1.3L

Run time: 1.6hrs per tank

Weight: 81.6 lbs (HS520C) / 88.2 lbs (HS520CS)

specifications subject to change without notice

Accessories

snowblower cover $call

model

HS520C/CS snowblower

year

2009/10


click to enlarge

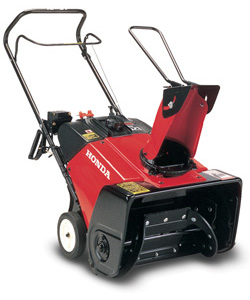

Highlights

The HS621 series is perfect for the suburban or in town paved driveway, 2 cars wide and 2 cars deep. It's compact design requires a minimum of space in the garage and the handles are easily removed for summer storage or transport.

There are two models available, specifications are identical except for the starting system. the HS621CS comes with an AC electric starter which you simply plug into an electrical wall outlet and push the button on the starter panel.

The standard Honda GX160 6HP Over Head Cam Engine is very light, quiet, powerful and easy to start. To change the engine oil just remove the dipstick, place a pan at the rear of the blower and tip it backwards. The dipstick holder acts as a pour spout directing the oil right into the pan.

The HS621's auger system is single stage design with rubber tips which contact the surface and provide a semi selfpropelled result. The rubber tipped augers also cleans right down to the surface of the drive or walkway. In addition, this is very good for unistone applications as the rubbers will not chip their surfaces.

The controls are very simple! There is an on/off switch, choke knob and a single lever on the discharge chute which controls left/right and up or down adjustments.

The HS621 has excellent power and is capable of clearing heavy snow. The HS621 is capable of throwing snow up 33 feet depending on the conditions.

This type of auger is not recommended for dirt or gravel driveways.

Specifications

Engine: 6hp 163cc

Clearing width: 21"

Clearing height: 12.7"

Drive type: auger assist

Auger: rubber edge, belt driven

Auger height adjust: scraper bar

Chute rotation: manual lever

Chute deflection: manual lever

Clearing volume: Up to 33 metric tons/hr (36 tons/hr)

Starting: recoil (HS621C) / recoil/120v AC electric start (HS621CS)

Worklight: no

Fuel tank: 1.25L

Run time: 1.4hrs per tank

Weight: 91.5 lbs (HS621C) / 96 lbs (HS621CS)

specifications subject to change without notice

Accessories

snowblower cover $call

model

HS621C/CS snowblower

year

2009/10


click to enlarge

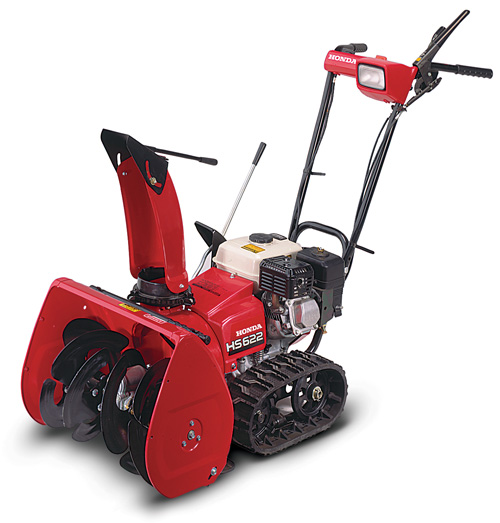

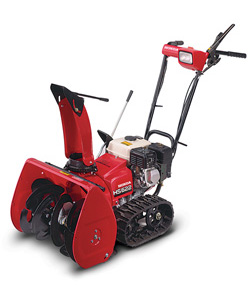

Highlights

There are two models available, specifications are identical except for the starting system. the HS622TCS comes with an AC electric starter which you simply plug into an electrical wall outlet and push the button on the starter panel. A worklight is also standard on the TCS model.

The HS622 series are truly unique in the industry. They offer dual-stage clearing performance in a lightweight, track-driven and compact package. The truly unique component of the HS622 series other than the obvious track drive system is the auger drive system. It utilizes a motorcycle type, multi-friction disk drive that connects the auger drive shaft directly to the engine - no drive belts or pulleys! This type of system is more efficient and transmits maximum horsepower to the auger. The result is a 6 horsepower snowblower that has the performance of much larger competitors machines. The other most notable feature of the HS622s is their overall balance, traction and maneuverability capabilities. This is something you only get a true feel for after demonstrating one.

The standard Honda GX160 6HP Over Head Valve Engine is lightweight, quiet, powerful, easy to start and requires very little maintenance.

A three way auger height adjustment can also be made by removing the lock nut and bolts (one each side) at the rear of the the chassis, tilting the auger housing up or down to the desired position and replacing the nut and bolt. The three different positions are set for scraping, normal (housing rides on skid shoes) or skimming (generally for gravel driveways).

Specifications

Engine: 6hp 163cc

Clearing width: 21.7"

Clearing height: 16.5"

Drive type: track driven with gear mesh transmission

Auger: steel, clutch drive

Auger height adjust: 3 position adjuster

Chute rotation: manual lever

Chute deflection: manual lever

Clearing volume: Up to 37 metric tons/hr (41 tons/hr)

Starting: recoil (HS622TC) / recoil/120v AC ele. start (HS622TCS)

Worklight: optional (HS622TC) / Standard (HS622TCS)

Fuel tank: 3.5L

Run time: 3.5 hrs per tank

Weight:150 lbs (HS724TC) / 170 lbs (HS724TCD)

specifications subject to change without notice

Accessories

snowblower cover $call

worklight kit for HS622T $call

drift breaker kit $call

model

HS622TC/TCS snowblower

year

2009/10


click to enlarge

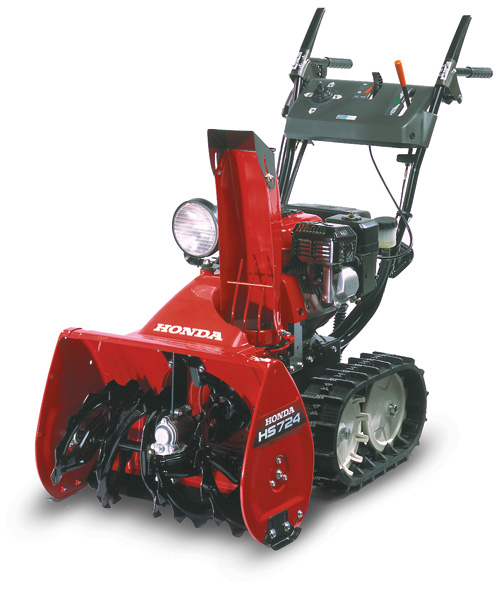

Highlights

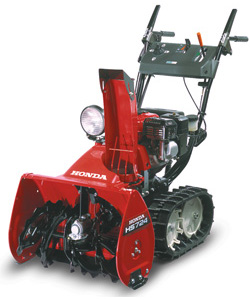

There are two HS724 models available, one has manual start and manual crank chute and the other has D.C. electric start and an electrically powered chute for both left/right and up/down adjustments.

The standard Honda GX200 7HP Over Head Valve Engine is lightweight, quiet, powerful, easy to start and requires very little maintenance.

Both models have an infinitely variable hydrostatic transmission. This feature is exclusive to Honda Snowblowers and the true key to efficient snow blowing. The hydrostatic transmission allows you to set the ground speed independently of engine and auger speed to perfectly match the snow conditions.

The gas-assist auger tilt system is standard on both the TC and TCD models. This feature allows the customer to change the height of the auger housing without stopping. To activate the tilt feature all you have to do is pull on the right hand lower lever and with either downward or lifting action on the control handles the desired auger housing height can be quickly obtained.

The serrated edge on the auger itself is designed to chew through icy banks or hard-packed snow left by road ploughs at the end of the driveway. With the auger positioned in the scraping mode this serrated edge will also remove ice ruts and ridges from a drive or walkway.

Specifications

Engine: 7hp 196cc

Clearing width: 23.8"

Clearing height: 16.5"

Drive type: track driven with hydrostatic transmission

Auger: steel serrated, belt driven shaft

Auger height adjust: gas assist

Chute rotation: manual crank (HS724TC)/ electric "Joystick" control (HS724TCD)

Chute deflection: manual lever (HS724TC)/ electric "Joystick" control (HS724TCD)

Clearing volume: Up to 42 metric tons/hr (46 tons/hr)

Starting: recoil (HS724TC) / recoil/12v DC electric start (HS724TCD)

Worklight: standard

Fuel tank: 3.5L

Run time: 3.5 hrs per tank

Weight:198.4 lbs (HS724TC) / 218.3 lbs (HS724TCD)

specifications subject to change without notice

Accessories

snowblower cover $call

drift breaker kit $call

model

HS724TC/TCD snowblower

year

2009/10


click to enlarge

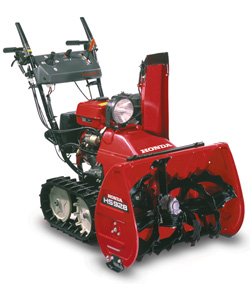

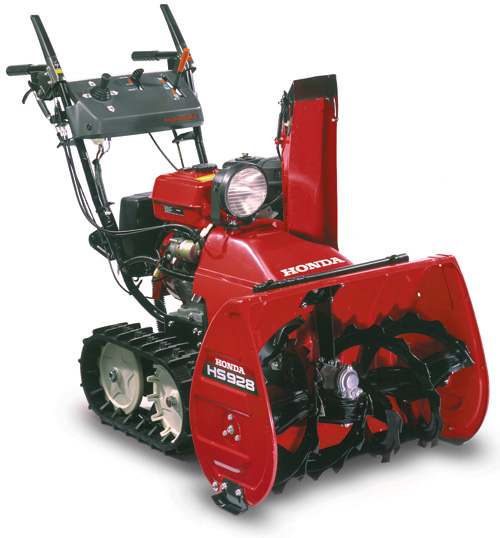

Highlights

There are three HS928 models available, two have manual start and manual crank chute (TC and WC) and the other has D.C. electric start and an electrically powered chute for both left/ right and up/ down adjustments (TCD).

The Honda GX270 9HP Over Head Valve Engine is lightweight, quiet, powerful, easy to start and requires very little maintenance. The Honda GX270 9HP Over Head Valve lightweight Engine is standard on all three models.

The gas-assist auger tilt system is standard on all three models. This feature allows the customer to change the height of the auger housing without stopping. To activate the tilt feature all you have to do is pull on the right hand lower lever and with either downward or lifting action on the control handles the desired auger housing height can be quickly obtained.

The serrated edge on the auger itself is designed to chew through icy banks or hard-packed snow left by road ploughs at the end of the driveway. With the auger positioned in the scraping mode the serrated edge will also remove ice ruts and ridges from a drive or walkway.

The *HS928WC model is the only Honda snowblowwer sold in Canada that is wheel driven. Honda Canada makes this unit with wheel drive available for customers with specific requirements such as a snow clearing contractor who rolls his blower up and down a ramp into a pick-up truck all day. The wheel driven unit does not have the same traction as the track types and are not as maneuverable because the axle is solid which requires more room to turn.

Specifications

Engine: 9hp 270cc

Clearing width: 28"

Clearing height: 20.1"

Drive type: track (*wheels HS928WC only) driven with hydrostatic transmission

Auger: steel serrated, belt driven shaft

Auger height adjust: gas assist

Chute rotation: manual crank (TC, WC)/ electric "Joystick" control (TCD)

Chute deflection: manual lever (TC, WC)/ electric "Joystick" control (TCD)

Clearing volume: Up to 50 metric tons/hr (55 tons/hr)

Starting: recoil (HS928TC, HS928WC) / recoil/12v DC electric start (HS928TCD)

Worklight: standard

Fuel tank: 6L

Run time: 2.5 hrs per tank

Weight:212 lbs (HS928WC) / 234 lbs (HS928TC) / 240 lbs (HS928TCD)

specifications subject to change without notice

Accessories

snowblower cover $call

drift breaker kit $call

model

HS928TC/TCD/WC snowblower

year

2009/10


click to enlarge

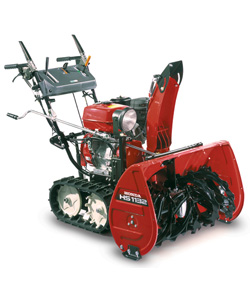

Highlights

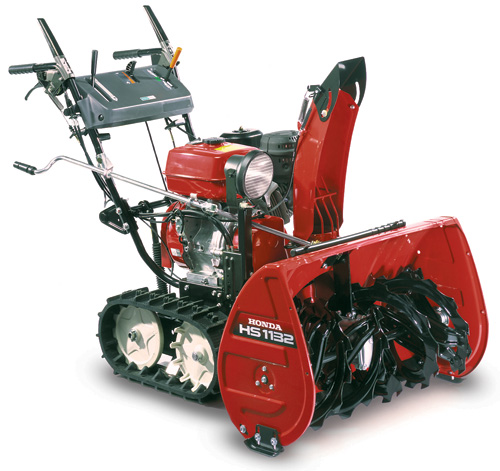

There are two HS1132 models available, one has manual start and manual crank chute and the other has A.C. electric starter.

The Honda GX340 11HP Over Head Valve Engine is lightweight, quiet, powerful, easy to start and requires very little maintenance.

Both models have an infinitely variable hydrostatic transmission. This feature is exclusive to Honda Snowblowers and the true key to efficient snow blowing. The hydrostatic transmission allows you to set the ground speed independently of engine and auger speed to perfectly match the snow conditions.

The gas-assist auger tilt system is standard on both the TC and TCS models. This feature allows the custom to change the height of the auger housing without stopping. To activate the tilt feature all you have to do is pull on the right hand lower lever and with either downward or lifting action on the control handles the desired auger housing height can be quickly obtained.

The serrated edge on the auger itself is designed to chew through icy banks or hard-packed snow left by road ploughs at the end of the driveway. With the auger positioned in the scraping mode this serrated edge will also remove ice ruts and ridges from a drive or walkway.

Specifications

Engine: 11hp 337cc

Clearing width: 31.9"

Clearing height: 20.1"

Drive type: track driven with hydrostatic transmission

Auger: steel serrated, belt driven shaft

Auger height adjust: gas assist

Chute rotation: manual crank

Chute deflection: manual lever

Clearing volume: Up to 65 metric tons/hr (72 tons/hr)

Starting: recoil (HS1132TC) / recoil/120v AC electric start (HS1132TCS)

Worklight: standard

Fuel tank: 6.6L

Run time: 2.3 hrs per tank

Weight:265 lbs (HS1132TC) / 234 lbs (HS1132TCS)

specifications subject to change without notice

Accessories

snowblower cover $call

drift breaker kit $call

tire chains (HS928WC) $call

model

HS1132TC/TCS snowblower

year

2009/10


click to enlarge

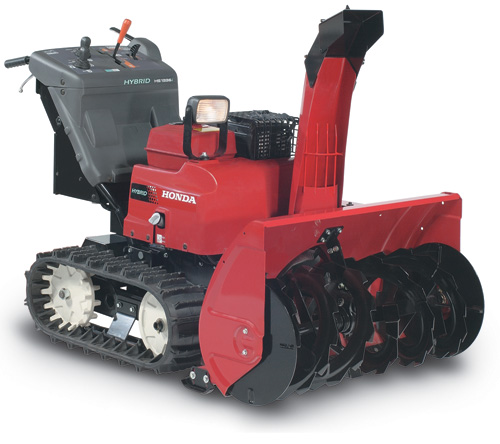

Highlights

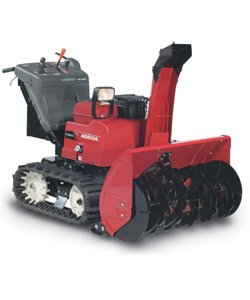

Honda's Hybrid system for the HS1336ic employs two separate drive systems in one machine – a four-stroke gasoline engine for snow clearing, and 2 electric motors for directional control and forward and reverse motion.

The computerized “i-control” system makes the entire snowclearing process smoother, simpler and more comfortable for the operator – just engage the system by depressing the “i-control” button and the 1336ic automatically adjusts ground speed to snow load and completes repetitive tasks such as lifting the auger housing for reversing.

Computer-controlled track drive with two separate electric drive motors ensures smooth and precise turns with a light squeeze of the handlebar controls.

The standard Honda GX390 13HP Over Head Valve Engine is lightweight, quiet, powerful, easy to start and requires very little maintenance.

Key features also include Automatic/manual electric Power Tilt, Electric Power Chute with joystick and DC Electric Start.

Specifications

Engine: 13hp 389cc

Clearing width: 36"

Clearing height: 22.81"

Drive type: track driven with Electric i-Control (24 VDC drive motors)

Auger: steel serrated, belt driven shaft, electromagnetic clutch

Auger height adjust: electric

Chute rotation: electric "Joystick" control

Chute deflection: electric "Joystick" control

Clearing volume: Up to 83 metric tons/hr (91 tons/hr)

Starting: recoil / 12v DC electric start

Worklight: 24 VDC, 40 watt standard

Fuel tank: 6.5L

Run time: 2.0 hrs per tank

Weight:260 lbs

specifications subject to change without notice

Accessories

snowblower cover $call

scraper bar kit $call

model

HSM1336iC Hybrid snowblower

year

2009/10


click to enlarge

All remaining inventory on sale!! Check with store for special pricing.

Description

Model

MSRP

Comments

5hp 20" Series

HS520C

$ 999

5hp 20" Series

HS520CS

$1199

6hp 21" Series

HS621C

$1299

6hp 21" Series

HS621CS

$ 1499

6hp 22" Series

HS622TC

$ 1999

6hp 22" Series

HS622TCS

$ 2199

7hp 24" Series

HS724TC

$ 2999

7hp 24" Series

HS724TCD

$ 3599

9hp 28" Series

HS928WC

$ 2999

9hp 28" Series

HS928TC

$ 3399

9hp 28" Series

HS928TCD

$ 3999

11hp 32" Series

HS1132TC

$ 3799

11hp 32" Series

HS1132TCS

$ 4099

13hp 36" Series

HSM1336ic

$ 8299

specifications and pricing subject to change without notice
